Spiking-Network Trading

Predicting and trading financial time series with spiking neural networks

A research framework for predicting and trading financial time series — intraday stock/ETF prices, plus synthetic benchmarks like sine waves and Mackey–Glass — using spiking neural networks. It was the main experimental codebase for a multi-year stretch of neural-network trading research (~2013–2015).

The core idea: convert a price signal into spike trains, feed them into a recurrent spiking-neural-network reservoir, read out the reservoir’s activity to predict the signal a few steps ahead, and turn those predictions into buy/sell/hold decisions, scored by simulated per-trade profit over historical data. The framework is modular — data source → encoder → network → readout → trader → interface — so each stage has several interchangeable implementations.

Approach

  • Spike encoding — a derivative-based encoder converts an analog price signal into spikes, each tagged buy or sell by the direction of change.
  • Spiking reservoir — a recurrent network of integrate-and-fire units with multi-delay connections and alpha-function synapses, normalized to a useful dynamical regime. Static and stochastic-input variants act as baselines, and parallel/cascade encoder networks feed it multi-channel input.
  • Readout & prediction — trained readout units learn to forecast the signal’s next steps from reservoir activity.
  • Trading & evaluation — several trader types (MLP, regime-switching, and spiking-network-driven) turn forecasts into actions; historical backtests, optionally modeling a bid/ask spread, score per-trade profit; an oracle “cheating” baseline that peeks at the true future bounds the best achievable result; and a batch harness sweeps parameters across many runs.

Prediction methods explored

Beyond the spiking reservoir, the project tried several interchangeable predictors behind a common interface:

  • Delay-coordinate “recurrence image” — recent history as a 2-D image plus a linear readout (detailed below).
  • Delay-coordinate embedding and nearest-neighbor trajectory matching — classic state-space prediction over reconstructed phase space.
  • Echo State Network and critical-branching reservoirs — alternative recurrent readouts (from companion projects au_net and rl_cb_net).
  • TISEAN wrapper — the external nonlinear-time-series toolkit, used both as a predictor and a denoiser.

There is also a parallel options-trading sub-project with its own data sources, strategies, and runner.

Delay-coordinate “recurrence image” predictor

One method represents recent price history as a two-dimensional recurrence image — each pixel encodes the difference between the signal at two delayed times — and fits a simple linear readout mapping that image to the value several steps ahead.

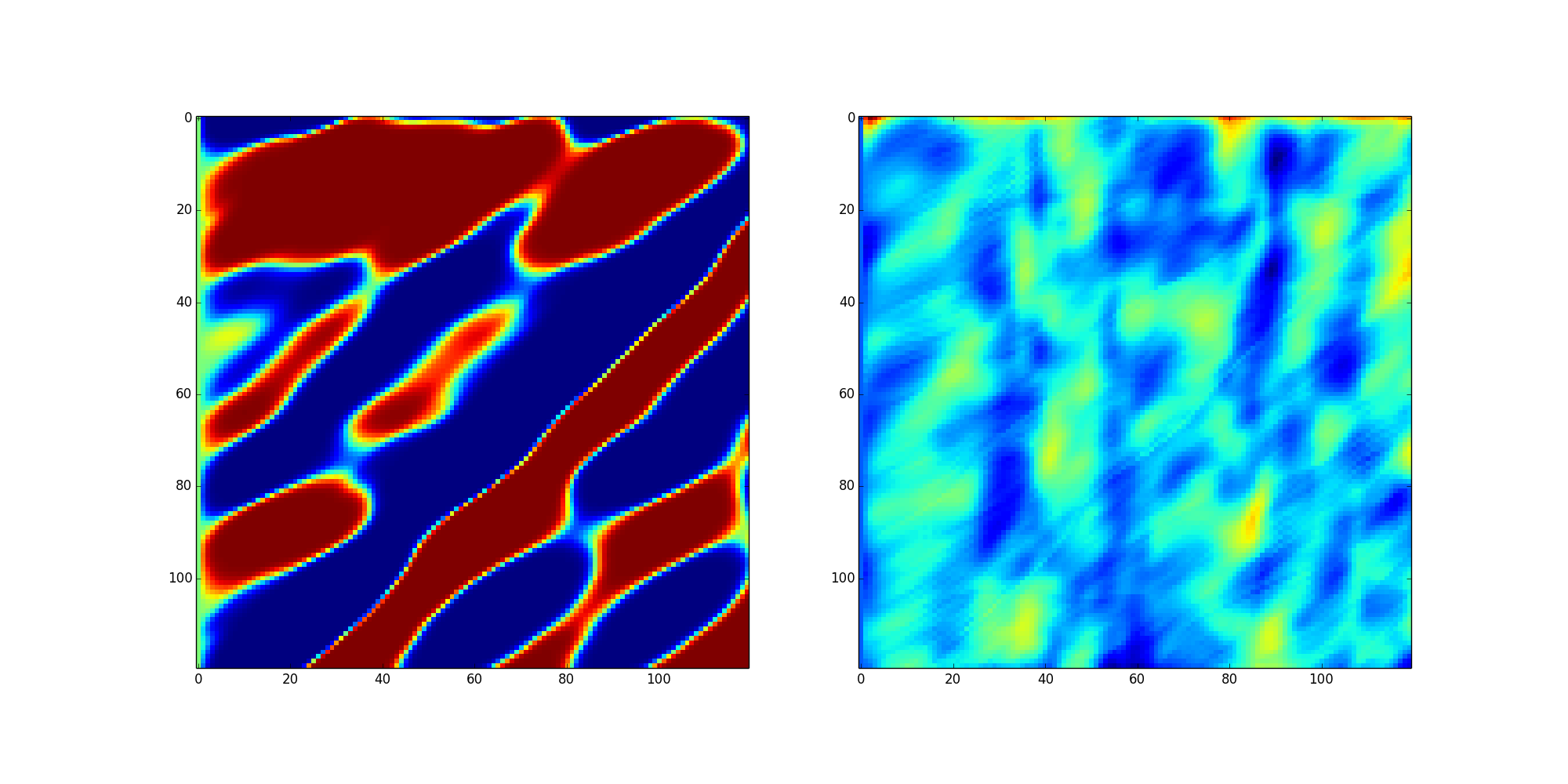

Left: the recurrence image — recent price history encoded as a 2-D image, where each pixel is the difference between the signal at two delayed times; the banded structure reflects the signal's quasi-periodic swings. Right: the linear-readout weights learned to map that image to the value a few steps ahead, reshaped back into the same 2-D layout.

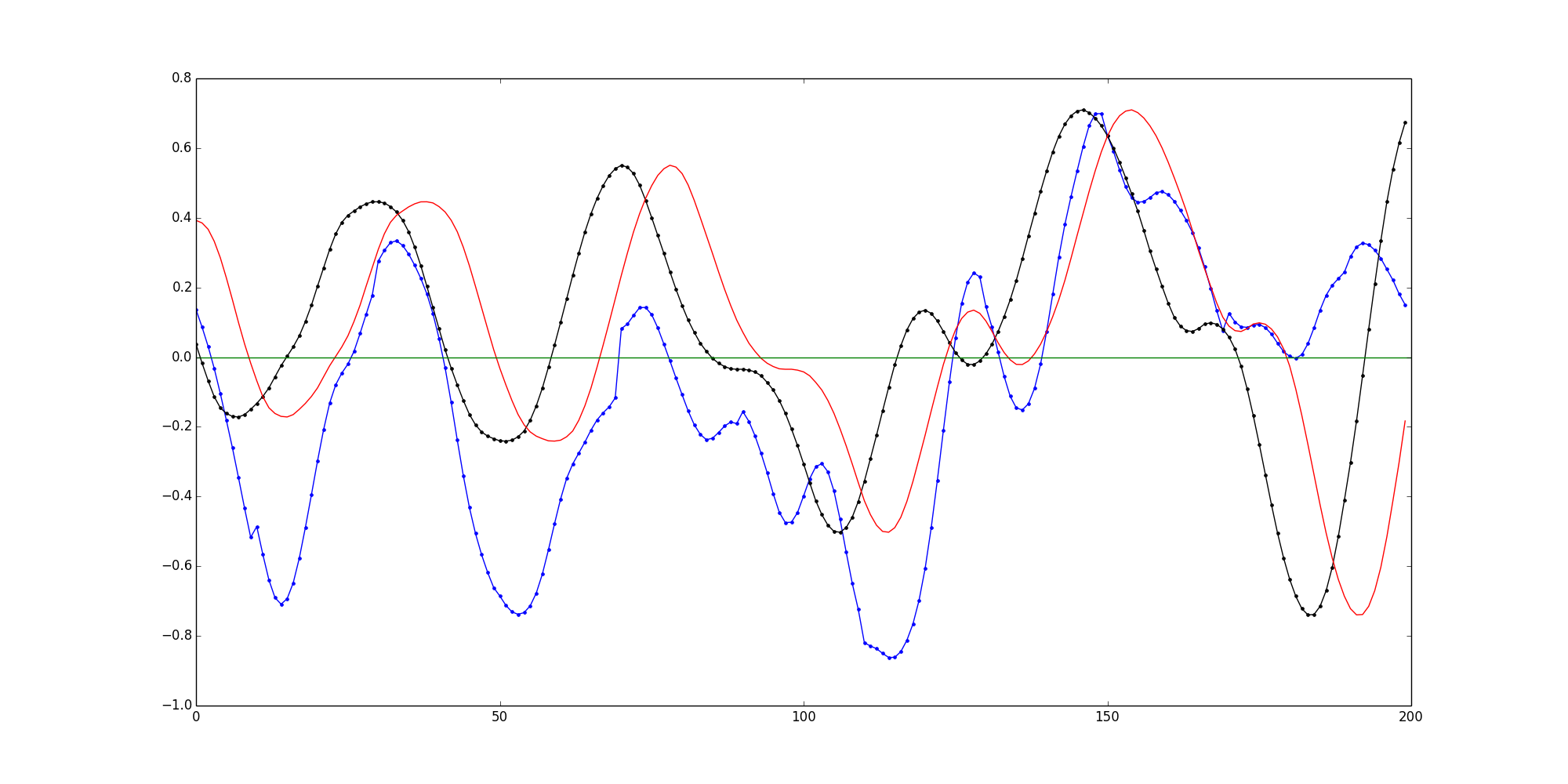

Forecast vs. outcome on a window of smoothed (low-pass-filtered) market data. Blue: the model's prediction of the value eight steps ahead. Black: the actual value eight steps ahead. Red: the present value, shown as a persistence reference. The prediction follows the broad direction of the larger swings but with substantial error — and on data this smooth, it does not clearly beat the persistence baseline.

Built in Python with NumPy, SciPy, and Matplotlib, with some experiments bridging to MATLAB/Octave and the external TISEAN toolkit.

GitHub repository
